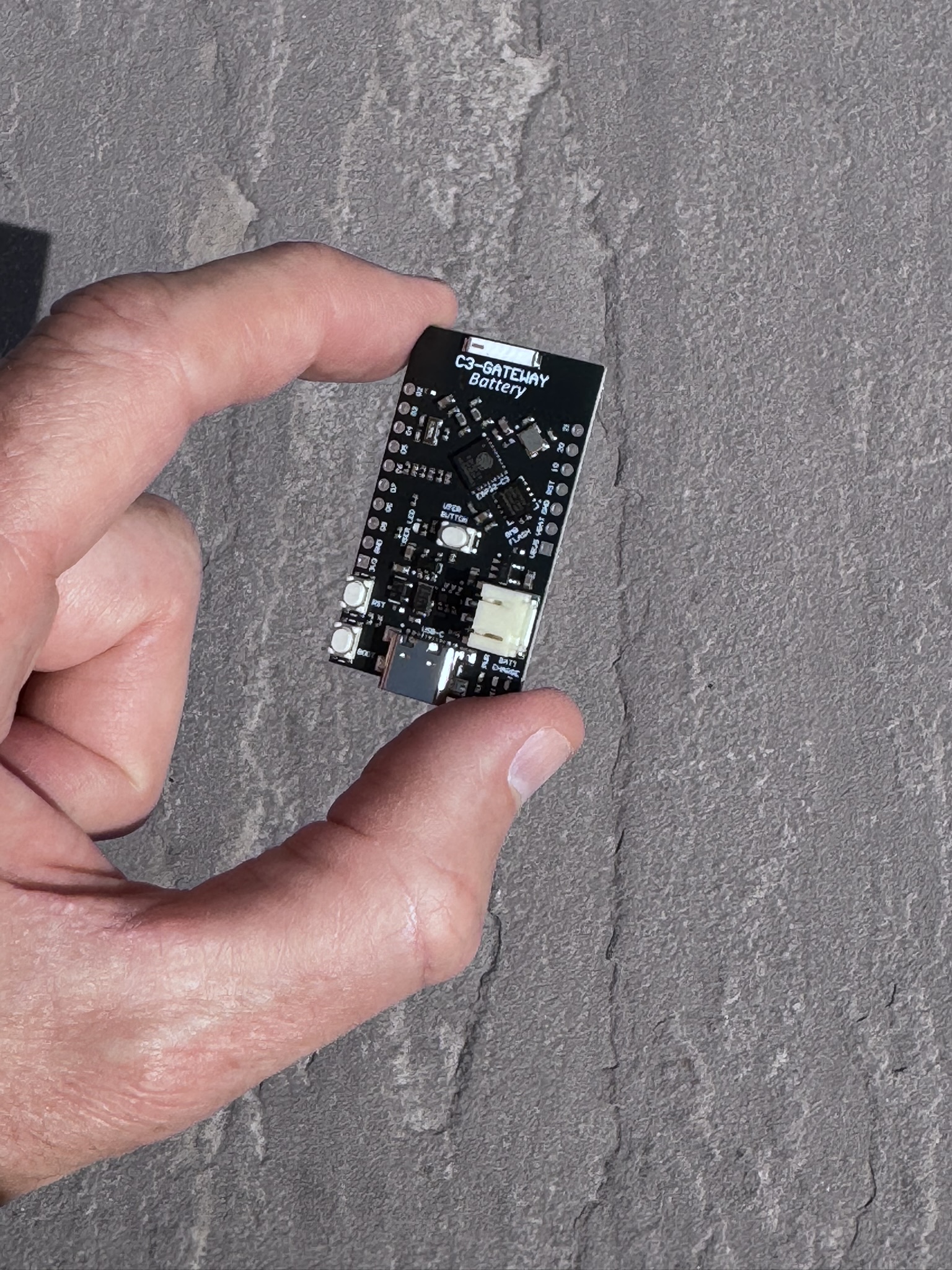

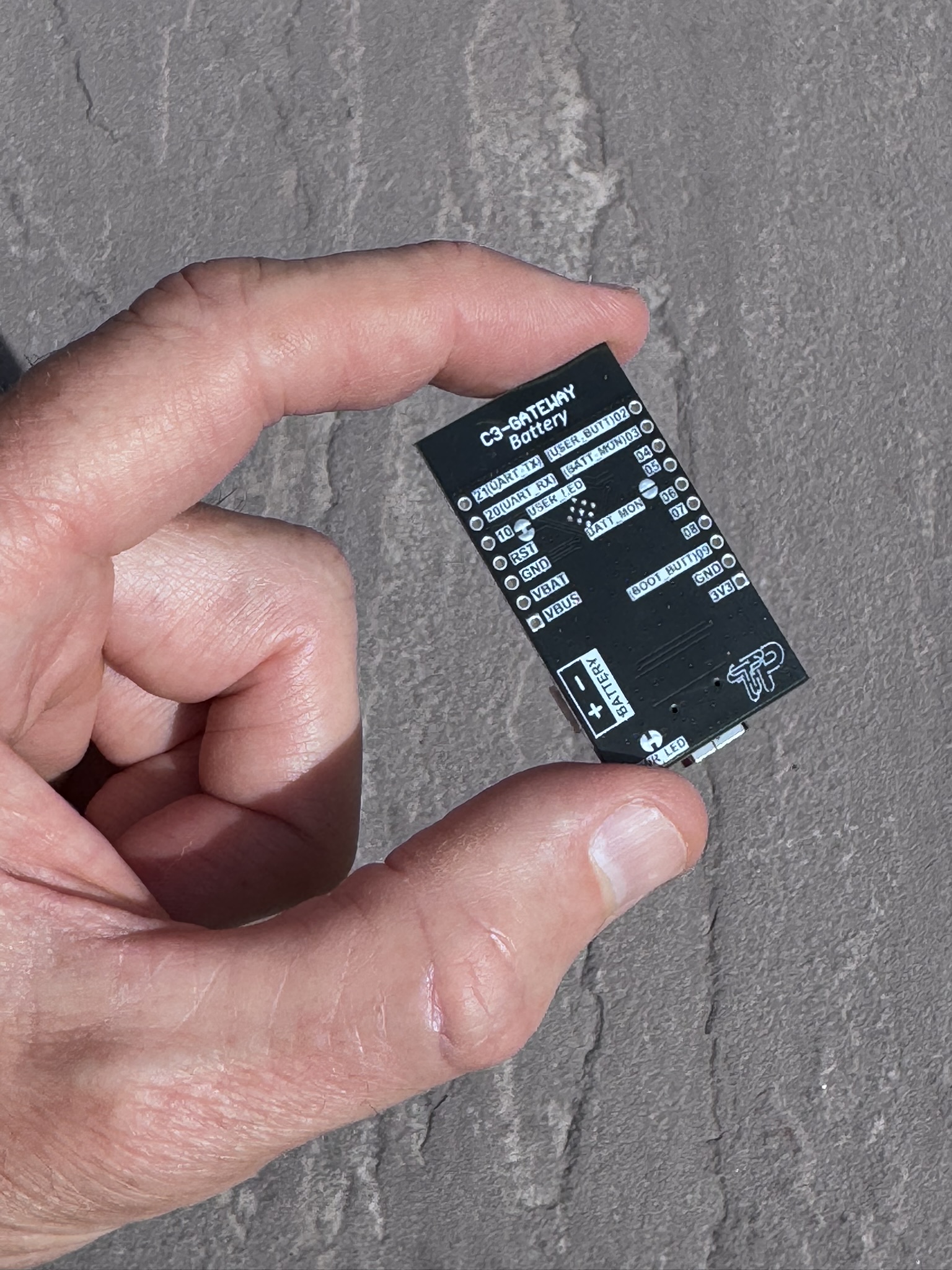

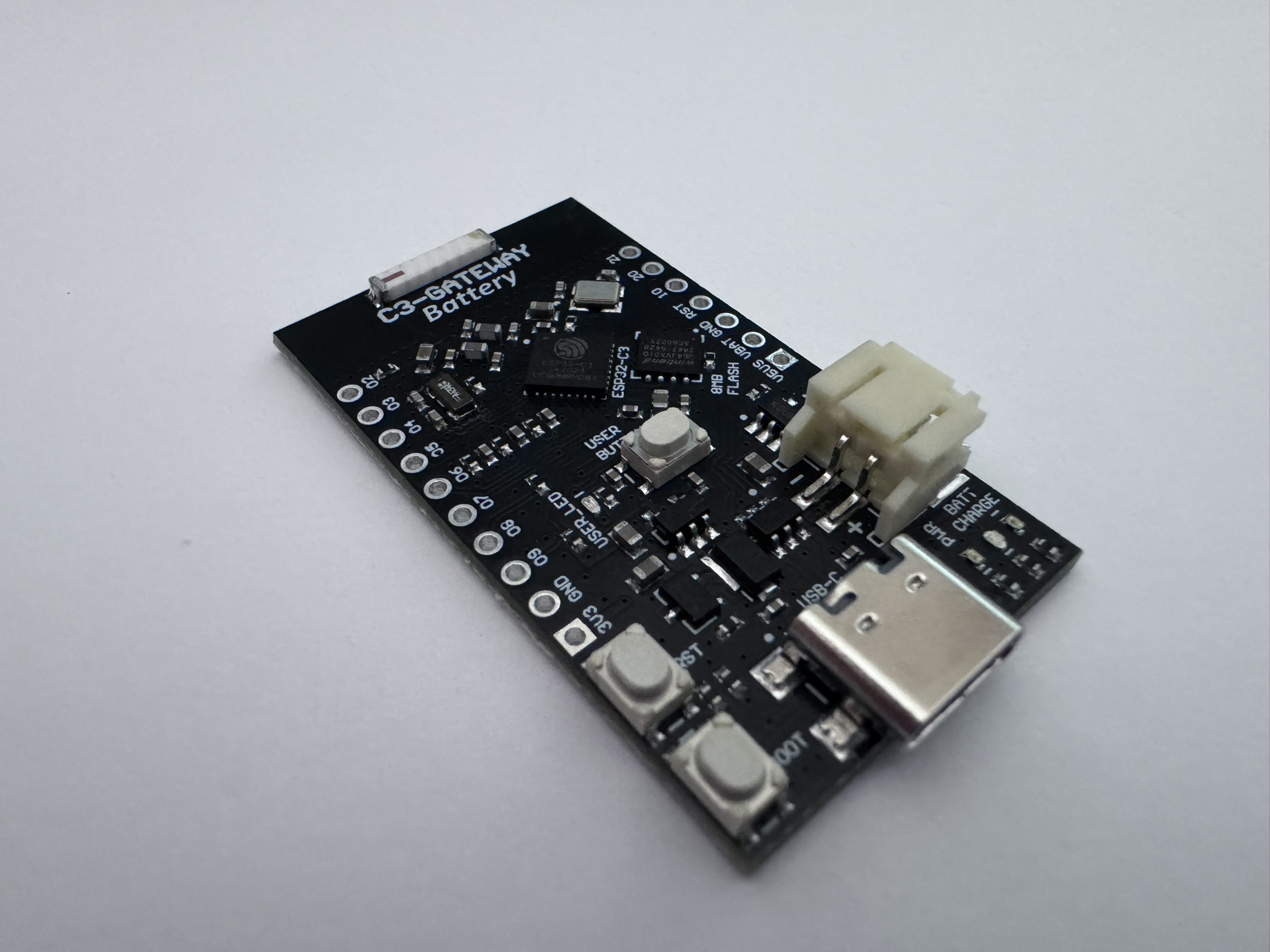

C3-GATEWAY BATTERY
The C3-GATEWAY Battery, is a low-power IoT development board, perfect for most IoT projects that require plenty of memory, reliable wireless communications, and the ability to add a battery to your application, as well as charge it via the USB-C serial port.
*Battery, Breadboard or Sensor not included*
£15.00
9 in stock
Description:
The C3-GATEWAY Battery, is a low-power IoT development board, perfect for most IoT projects that require plenty of memory, reliable wireless communications, and the ability to add a battery to your application, as well as charge it via the USB-C serial port.

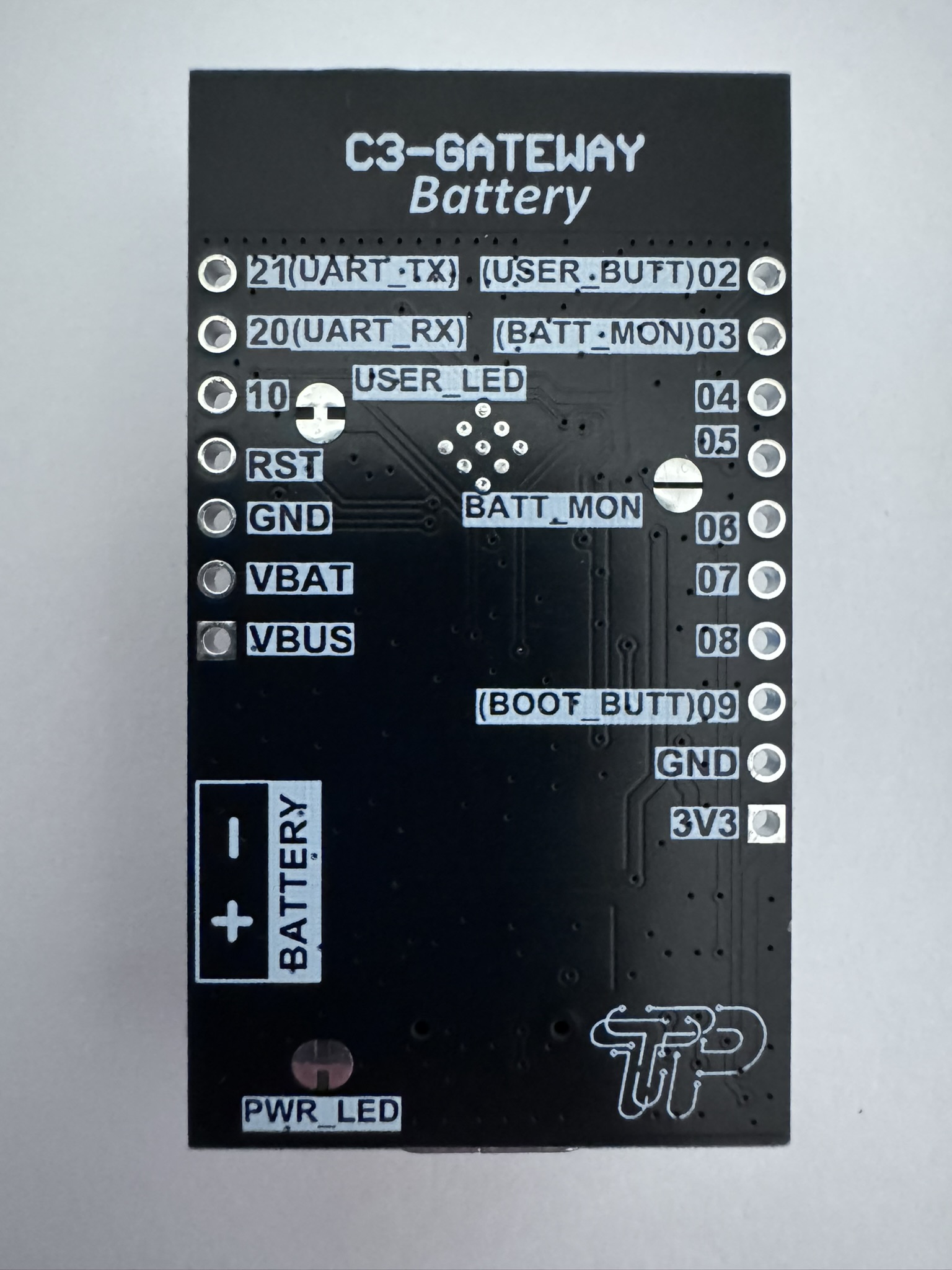

With the onboard “solder bridges” you have the option to remove the “User LED” and/or the “Power Indicator LED” to save power if required. You can also add the “Battery Measurement Circuitry” to GPIO3 if you choose to monitor the level of your battery. In addition to this an external 32.768kHz crystal is provided, allowing for an accurate and low power RTC input to the ESP32-C3.
Features:
- Supporting IEEE 802.11b/g/n (2.4GHz WiFi) as well as Bluetooth 5 (LE).
- 8MB (64Mb) of External Flash Memory

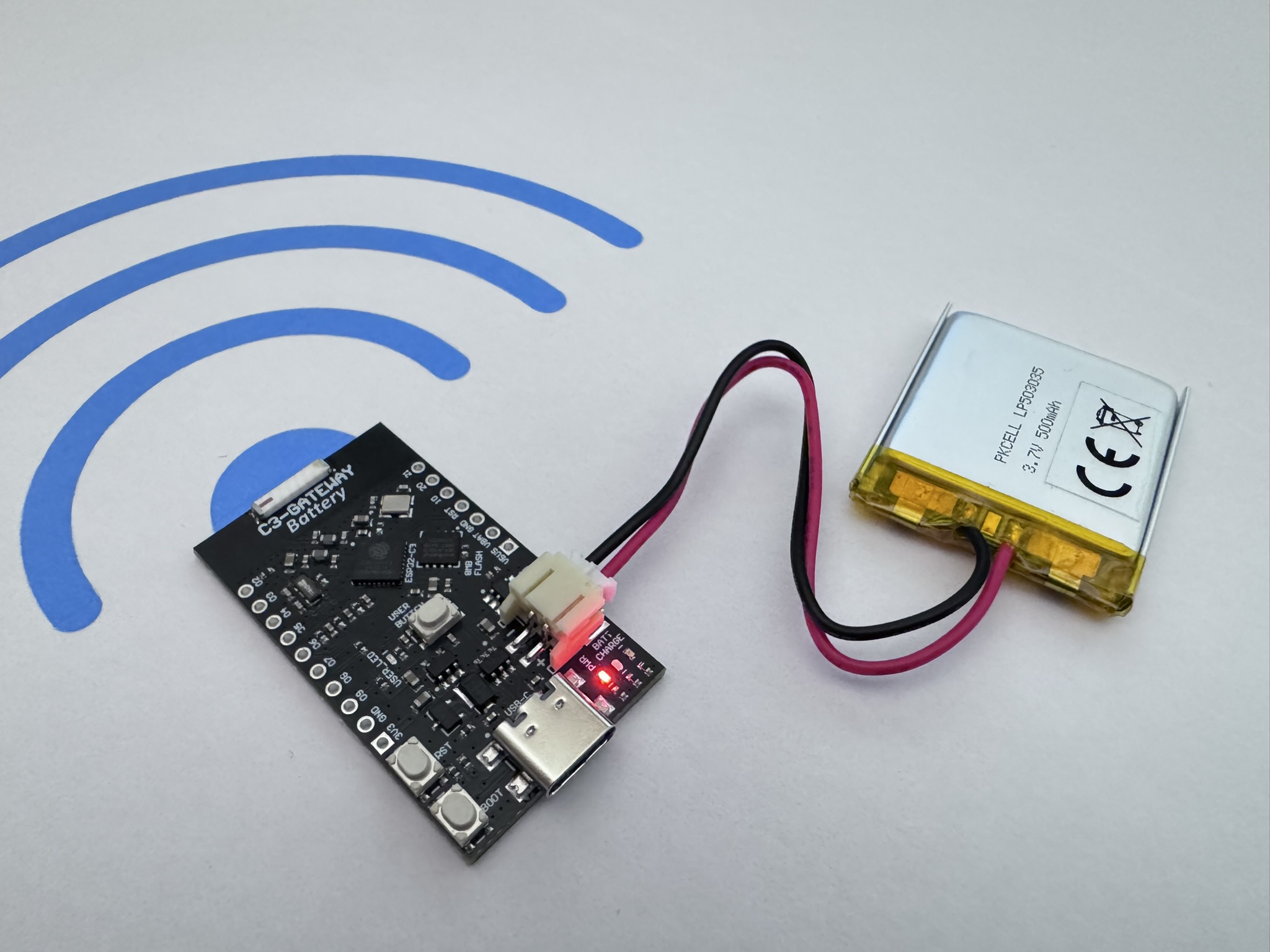

- Single cell LiPo Battery Charger Circuit, with 2-Pin battery connector fitted.
- Battery Charge Status LEDs.
- Voltage Divider Circuit with in-line solder bridge for easy insertion if required.
- USB-C Port for programming, debugging and charging LiPo battery.
- High Gain Chip Antenna.

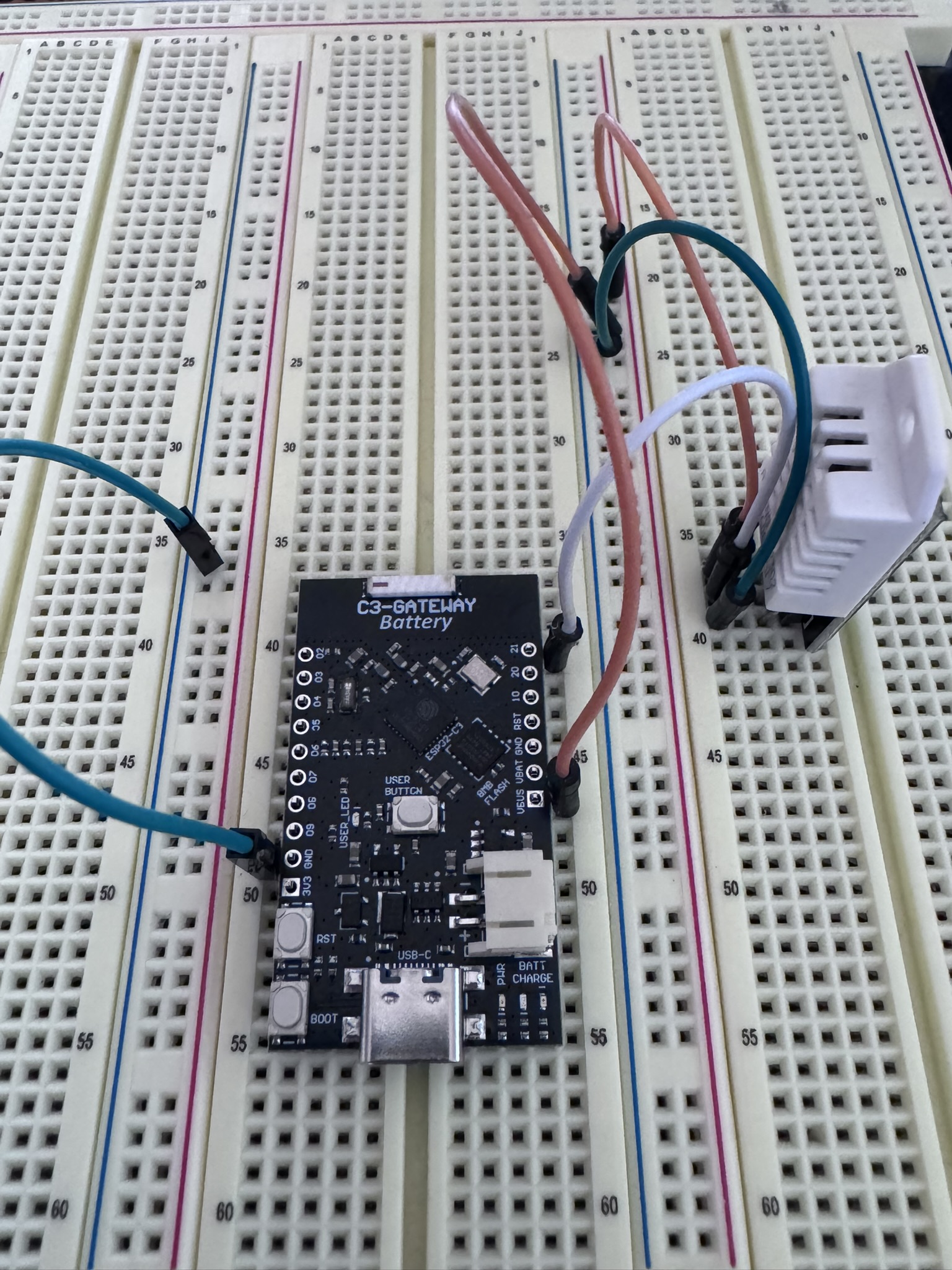

- Designed to Fit on a Bread Board with Space Either Side for Connecting Jumper Wires.
- “User Button” – Connected to GPIO2 (external interrupt pin).
- “User LED” – Single Green LED with in-line solder bridge for easy removal if not required.
- “Power Indicator LED” – Single Red LED with in-line solder bridge for easy removal if not required.
Included:
- 1 x C3-GATEWAY Development Board.
- 1 x 10-Pin Header.
- 1 x 7-Pin Header.
Specification:
| Features | Parameters |
| System on Chip | ESP32-C3, 32-bit RISC-V, Single Core Processor, Up to 160MHz |
| Internal Memory | 384 KB ROM 400 KB SRAM (16 KB for cache) 8 KB SRAM in RTC |
| External Memory | 3V 64M-bit, Serial Flash with Dual, Quad SPI |
| WiFi Protocol | IEEE 802.11 b/g/n Compliant |
| Bluetooth (LE) | Supports Bluetooth 5 and Bluetooth Mesh |
| GPIO Pins | 11 Pins Broken out, 3 of which are strapping pins. |
| Antenna | High Gain 50Ω Chip Antenna (Vertical Orientation) |
| Input Supply | USB-C, 5V |
| Battery Charger | Single-Cell Li-Polymer / Li-Ion Charge Management Controller |
| Charging Current | 500mA |
| Status LEDs | 1 x Red – Charging LED 1 x Green – Charged / No battery Connected LED 1 x Green – User LED |
| Product Size | 25mm x 47mm |
